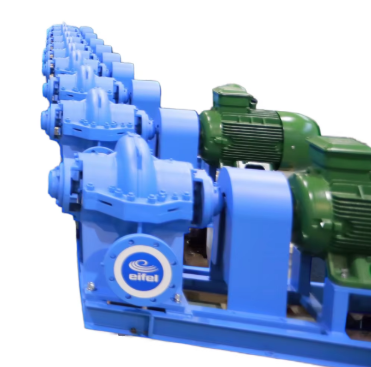

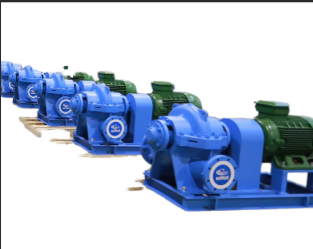

EIFEL ESD系列双吸剖分式泵采用全不锈钢结构，并具备防爆配置。该系列泵具有流量大、水力效率高、运行稳定、噪音低、使用寿命长等特点，安装和日常维护简便。广泛应用于工厂、矿山、市政供水、农业灌溉、暖通空调系统、船舶工程和汽车工业等需要高压和防爆保护的行业。
产品系列 :
ESD seires适用标准 :
GB/T5657-95, Q/ FZEF 001-2014 Standard容量 :
36~3400m3/h头部 :
8~190m入口和出口直径： :
80~400mm转速（转/分钟） :
1480 or 2980 rpm(50Hz)/ 1780 or 3580 rpm(60Hz)最大工作压力 :
1.6 MPa (standard) ; 2.5 MPa (on request)温度 :
85℃(standard); 105℃(on requset)Description & Features
EIFEL ESD series split case pumps feature a double-suction design. Characterized by high flow capacity, superior efficiency, steady operation, low noise emission and extended service life, this pump model also boasts convenient installation and maintenance. It is extensively applied across industries including factories, mines, municipal water supply, agricultural irrigation, HVAC systems and marine engineering.
Model Instruction:
Material Code
C: Cast Iron
Q: Ductile Iron
B: Brass
S: ASTM 420
45: ASTM 1045
S304: ASTM 304
S316: ASTM 316
Design & Structure
| Design | Performance referring to GB/T5657-95, Q/ FZEF 001-2014 Standard |
| Structure | Single-Stage, Double-Suction, Split-Casing |
| DN (mm） | 80~400 |
| Flange | DIN2501 PN16 GB / T17241.6 PN1.6 |
Material
| Part | Standard Material | Options on request |
| Casing | Cast Iron | Ductile Iron |
| Impeller | Brass | Cast Iron / ASTM304(CF8) / ASTM316(CF8M) |
| Shaft | ASTM1045 | ASTM304 / ASTM316 / ASTM420 |
| Shaft Seal | Mechanical Seal | Gland Packing |
Operating Data
| Flow Rate(Q) | 36~3400m3/h |
| Head(H) | 8~190 m |
| Speed | 1480 or 2980 rpm (50Hz) / 1780 or 3580 rpm (60Hz) |
| Max Temperature | 85℃(standard) ; 105℃(on request) |
| Working Pressure | 1.6MPa(standard) ; 2.5MPa(on request) |
| Conveying Medium | Clean water or liquids similar to clean water in physical property |
Applications
EIFEL ESD系列剖分式泵采用双吸入设计。该系列泵具有流量大、效率高、运行稳定、噪音低、使用寿命长、安装维护简便等优点，广泛应用于工厂、矿山、城市供水、灌溉、暖通空调和船舶等行业。
阅读更多
EIFEL ESD系列双吸剖分式泵采用全不锈钢结构，并具备防爆配置。该系列泵具有流量大、水力效率高、运行稳定、噪音低、使用寿命长等特点，安装和日常维护简便。广泛应用于工厂、矿山、市政供水、农业灌溉、暖通空调系统、船舶工程和汽车工业等需要高压和防爆保护的行业。
阅读更多
